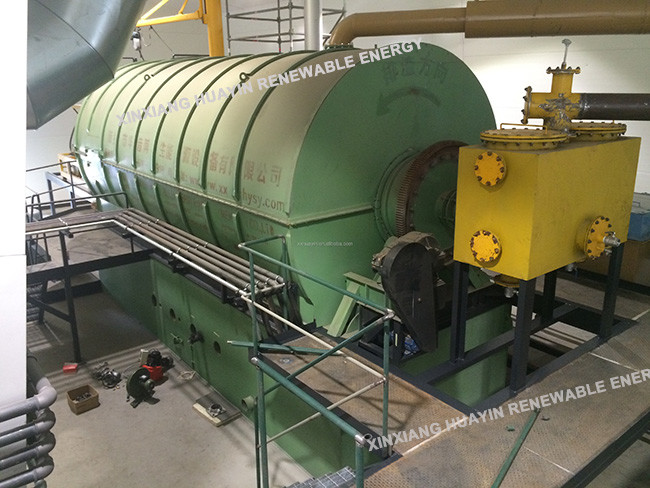

Pyrolysis Plant For Tyre Recycling 10 Ton Mixed Waste Plastic Pyrolysis Plant To Oil
Product description
The plastic waste that can be seen everywhere seriously pollutes our living environment, how to dispose of this plastic waste properly is increasingly important. Huayin waste plastic pyrolysis plant can recycle the waste plastic to fuel oil, carbon black, and gas through pyrolysis technology, the whole process is environmentally friendly and brings you large profit .
Output product and usage
| Output Products | Application |
| Fuel Oil (40%-55%) | 1. Used as the heating material and sell it to cement factories, glass factories, ceramic factories, electric power factories, steel making factories, boiler factories, etc.
2. Used in heavy oil generator for electricity generation.
3. Deep process it into diesel oil with our distillation plant, color, and smell removal system, the final oil can be used in trucks, tractors, etc. |
| Carbon Black (30%-35%) | 1. Make it to pellet or briquette as heating material. |
| Steel Wire (10%-15%) | Sell to iron and steel factory directly. |
| Flammable Gas (8%-10%) | 1. Recycled into the furnace to heat reactor instead of heating material. 2. Storage the excess gas to restart the next batch. |
Specification
| Item | Content |
| Raw materials | Waste tyre/rubber |
| Output | 45% fuel oil, 30% carbon black, 10% steel wire, 10%-15% syngas |
| Model | Reactor size | Capacity |
| HY1500*3000 | 1 T/batch |
| HY2200*5500 | 5 T/batch |
| HY2200*7500 | 7 T/batch |
| HY2600*6600 | 8 T/batch |
| HY2800*6000 | 9 T/batch |
| HY2800*6600 | 10 T/batch |
| HY2800*8000 | 15 T/batch |
| Remarks | Support customization |
| Reactor material and thickness | Q345R/Q245R/310S (Boiler plate/stainless steel) 16mm/18mm |
| Land area | 300-400㎡ (L30-40m*W10m) |
| Number of workers | 3-4 |
| Oil density and calorific value | 0.89g/cm³&44.30KJ/KG |
| Processing time and power | 10-24 hours. Averagely 15KW/h |
| Certification | CE, ISO, BV, SUV, SGS Oil Report, Emission Report, 11 patents |
Main advantages
A. Safety. We treat safety as the first important thing in production.
1. Two devices to avoid backfire in production: oil-water separator and anti-back fire device.
2. Vacuum device makes the reactor work under ordinary pressure or negative pressure.
3. Temperature monitoring and Pressure gauge to monitor the pressure. If the pressure goes above a certain level, the bell will alarm and the safety valve will release the pressure automatically.
B. Environmental protection
1. The flue gas (caused by burning fuel to heat the reactor) will be purified and cooled by a powerful ceramic packing dust removal device, then can be released into the air through the chimney.
2. Carbon black will be discharged out in sealed condition to avoid pollution.
C. Energy saving
1. The flame path is designed as a spiral so that the quantity of heat can be fully used.
2. The syngas is recycled to heating furnace for burning, thus saving your heating fuel.
3. The insulation cover is formed by 3 layers: steel plate, rock wool, and refractory cement. Excellent thermal insulation effect helps save fuel.

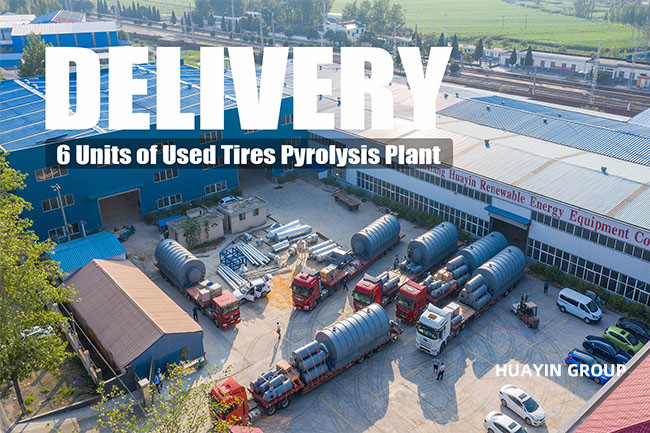

Packing and shipping
| Packaging details | 1*40FR and 1*40HQ for 10 tons 2*40 HQ for 5 tons Weight: about 30tons All goods are packed with export standard package to make sure no damage during transportation. |
| Detail details | about 15 days after receiving deposit. |
Our service
1. With over 20 years of manufacturing experience, we are confident to provide you with a quality pyrolysis plant at the most reasonable price.
2. Very short delivery time. The delivery time is usually 15 working days.
3. We can send engineers on-site to guide installation and train your workers, providing professional use guidance services.
4. One-year warranty, lifelong maintenance of the equipment, providing professional use guidance services.
