Batch Type Automatic Waste Plastic To Oil Small Machine Pyrolysis Plant
Product description
With the increasing awareness of environmental protection in the world, the harmless and resourceful disposal of waste tires/plastic has become an important trend. The waste plastic /tyre recycle to fuel oil machinery is designed to process the waste into valuable products -industrial fuel oil, carbon black, and steel wire through catalytic cracking technology. This green technology has created good economic and social benefits.
Output product and usage
FUEL OIL
The production rate of fuel oil is 40% in average. It's also known as tyre oil, pyrolysis oil, heating oil or furnace oil.The application is as heating fuel for industries such as power plant, cement plant, steel plant, metallurgical plant, glass plant etc.
CARBON BLACK
It produces approximately 35% of carbon black from used tyres. Carbon black is raw material for rubber&plastic industry or used as heating fuel.
STEEL WIRE
It's easy to sell to scrap metal dealers.
COMBUSTIBLE GAS
Combustible gas is routed to the heating system as a fuel supply. It saves the consumption of fuel oil.
Specification
| Product Model | Model F750 |
| Technology | Pyrolysis |
| Production Mode | Batch Type |
| Overall Dimension | L11.75 x W2.2 x H2.55 (m) |
| Total Weight | 15 tons |
| Internal Dimension of Reactor | Diameter 1.2m, Length 3m |
| Loading Volume | 3.39m3 |
| Loading Capacity | 750kg |
| Power Voltage Total Power | 380v 11.1kW |
Advantages of Main parts of the pyrolysis plant
INSTALLATION FREE

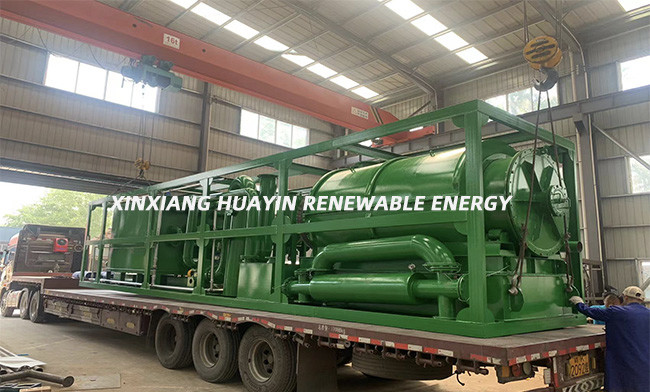

Model F750 adopts all-in-one design. All the parts are pre-assembled within a frame structure. When you receive it, just put it in position and connect water and electricity supplies, then it can start working. No need to worry about installation anymore.
ALL-IN-ONE STRUCTURE

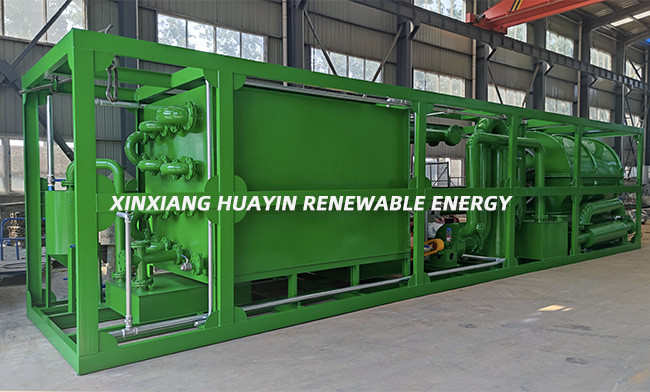

The main parts are pyrolysis reactor, heating system, de-duster, condenser pipe, square box condenser, oil tanks, oil-gas separator, oil-gas purification device, and syngas collector. All parts are in one frame structure. The all-in-one structure makes installation, transportation, operation and maintenance so easy.
